神经网络 | 感知器原理及python代码实现and和or函数

warning: 这篇文章距离上次修改已过679天,其中的内容可能已经有所变动。

目录

感知器原理

感知器结构感知器结构

如图,感知器中每个输入都有对应的权重,感知器在预测时:

输入向量

$$ \vec{inputs}=(x_1,x_2,...,x_n) $$

输出带权和

$$ weight\_sum=w_0+x_1×w_1+x_2×w_2+...+x_n×w_n=w_0+\sum_{i=1}^n (x_i×w_i) $$

其中即偏置bias

令权重也为一个向量,即weights,记为w,则带权和可写为:

$$ weighted\_sum=w_0+\vec{inputs}·\vec{w} $$

最后的输出结果只需把带权和放入激活函数即可:

$$ output=f(weighted\_sum)=f(w_0+\vec{inputs}·\vec{w}) $$

激活函数有很多,例如一些阶跃函数,tanh函数,sigmoid函数等等

那么训练模型时就得想办法确定权重向量weights和偏置数bias,具体见如下代码方法和步骤

代码方法和步骤

一、感知器代码原理解析

1.训练感知器,通过Perceptron类中的train(self, input_vecs, labels, iteration, rate)方法。

其中input_vecs为输入训练向量,labels为输入训练向量的标签向量,iteration为迭代次数,rate为学习率。每次迭代执行一次_one_iteration(self, input_vecs, labels, rate),可以理解为一个Epoch。

2.一次迭代中,将输入向量和标签用zip()函数打包在一起成为一个zip object,例如:
[([1, 1], 1), ([0, 0], 0), ([1, 0], 1), ([0, 1], 1)]

对其中的每个(input_vec,label),调用模型的predict()预测输入input_vec的output,再调用模型的_update_weights(input_vec, output, label, rate)更新输入向量对应的权重和模型整体的偏置bias。

3.权重向量w0初始为[0.0]*维度(在与或函数中维度为2即w0初始为[0.0,0.0] ),在_update_weights()函数中,首先计算出此次迭代的损失值deltak= label – output,即标签和预测值之差,不失为一个朴素的损失函数;再对权重向量weights(记为w)做如下处理:(学习率rate记为r)

对于输入向量集input_vecs中的每一个向量$input\_vec_k$:
VectorOp.element_add(self.weights, VectorOp.scala_multiply(input_vec, rate * delta))

$$ \vec{w_k}=\vec{w_{k-1}}+\vec{input_k}×(r×δ_k ) ,k=1,2,…,n $$

其中n为迭代次数iteration

4.模型预测函数predict(input_vec)传入一个输入向量input_vec,令 input_vec点乘模型权重weights再加上模型偏置bias,如下:
VectorOp.dot(input_vec, self.weights) + self.bias

得到的值传入模型的激活函数activator(x),本次模型使用的激活函数为一个阶跃函数:

$$ f(x)=\left\{ \begin{array}{rcl} 1& \text{for}& x>0 \\ 0 & \text{for} & x<=0 \end{array}\right. $$

最后激活函数返回的值作为这次predict(input_vec)的返回值返回。

$$ f(V_i \cdot W + Bias) $$

二、训练感知器实现or函数

1. 代码

from __future__ import print_function
from functools import reduce

class VectorOp(object):

    @staticmethod
    def dot(x, y):
        return reduce(lambda a, b: a + b, VectorOp.element_multiply(x, y), 0.0)

    @staticmethod
    def element_multiply(x, y):
        return list(map(lambda x_y: x_y[0] * x_y[1], zip(x, y)))

    @staticmethod
    def element_add(x, y):
        return list(map(lambda x_y: x_y[0] + x_y[1], zip(x, y))) #lambda 即匿名函数


    @staticmethod
    def scala_multiply(v, s):
        return map(lambda e: e * s, v)

class Perceptron(object):
    def __init__(self, input_num, activator):
        self.activator = activator
        self.weights = [-1.0] * input_num # 初始化权重
        print("init weights")
        print(self.weights)
        self.bias = 0.0

    def __str__(self):
        return 'weights\t:%s\nbias\t:%f\n' % (self.weights, self.bias)

    def train(self, input_vecs, labels, iteration, rate):
        for i in range(iteration):
            self._one_iteration(input_vecs, labels, rate)

    def _one_iteration(self, input_vecs, labels, rate):
        samples = zip(input_vecs, labels)
        # print(list(samples))
        for (input_vec, label) in samples:
            output = self.predict(input_vec)
            self._update_weights(input_vec, output, label, rate)

    def _update_weights(self, input_vec, output, label, rate):
        delta = label - output
        #print("=============\ndelta=%.1f"%delta)
        #print("updating,VectorOp.scala_multiply(input_vec, rate * delta):")
        #print(list(VectorOp.scala_multiply(input_vec, rate * delta)))
        #print("\nVectorOp.element_add(self.weights, VectorOp.scala_multiply(input_vec, rate * delta)):")
        #print(list(VectorOp.element_add(self.weights, VectorOp.scala_multiply(input_vec, rate * delta))))

        self.weights = VectorOp.element_add(
            self.weights, VectorOp.scala_multiply(input_vec, rate * delta))
        self.bias += rate * delta

    def predict(self, input_vec):
        return self.activator(
            VectorOp.dot(input_vec, self.weights) + self.bias)


def f(x):
    return 1 if x > 0 else 0

def get_training_dataset():
    # and函数的输入训练向量
    input_vecs = [[1, 1], [0, 0], [1, 0], [0, 1]]
    labels = [1, 0, 0, 0]

    return input_vecs, labels

def get_or_training_dataset():
    # or函数的输入训练向量
    input_vecs = [[1, 1], [0, 0], [1, 0], [0, 1]]
    labels = [1, 0, 1, 1]

    return input_vecs, labels

def train_and_perception():
    p = Perceptron(2, f)
    input_vecs, labels = get_training_dataset()
    p.train(input_vecs, labels, 10, 0.1)
    return p

def train_or_perception():
    p = Perceptron(2, f)
    input_vecs, labels = get_or_training_dataset()
    p.train(input_vecs, labels,0, 0.1)  # 输入向量,标签,迭代次数,学习率
    return p

if __name__ == '__main__':
    #and_perception = train_and_perception()
    #print(and_perception)
    # and测试
    #print( '1 and 1 = %d' % and_perception.predict([1, 1]))
    #print( '1 and 0 = %d' % and_perception.predict([1, 0]))
    #print( '0 and 1 = %d' % and_perception.predict([0, 1]))
    #print( '0 and 0 = %d' % and_perception.predict([0, 0]))

    or_perception = train_or_perception()
    print(or_perception)
    # or测试
    print('1 or 1 = %d' % or_perception.predict([1, 1]))
    print('1 or 0 = %d' % or_perception.predict([1, 0]))
    print('0 or 1 = %d' % or_perception.predict([0, 1]))
    print('0 or 0 = %d' % or_perception.predict([0, 0]))

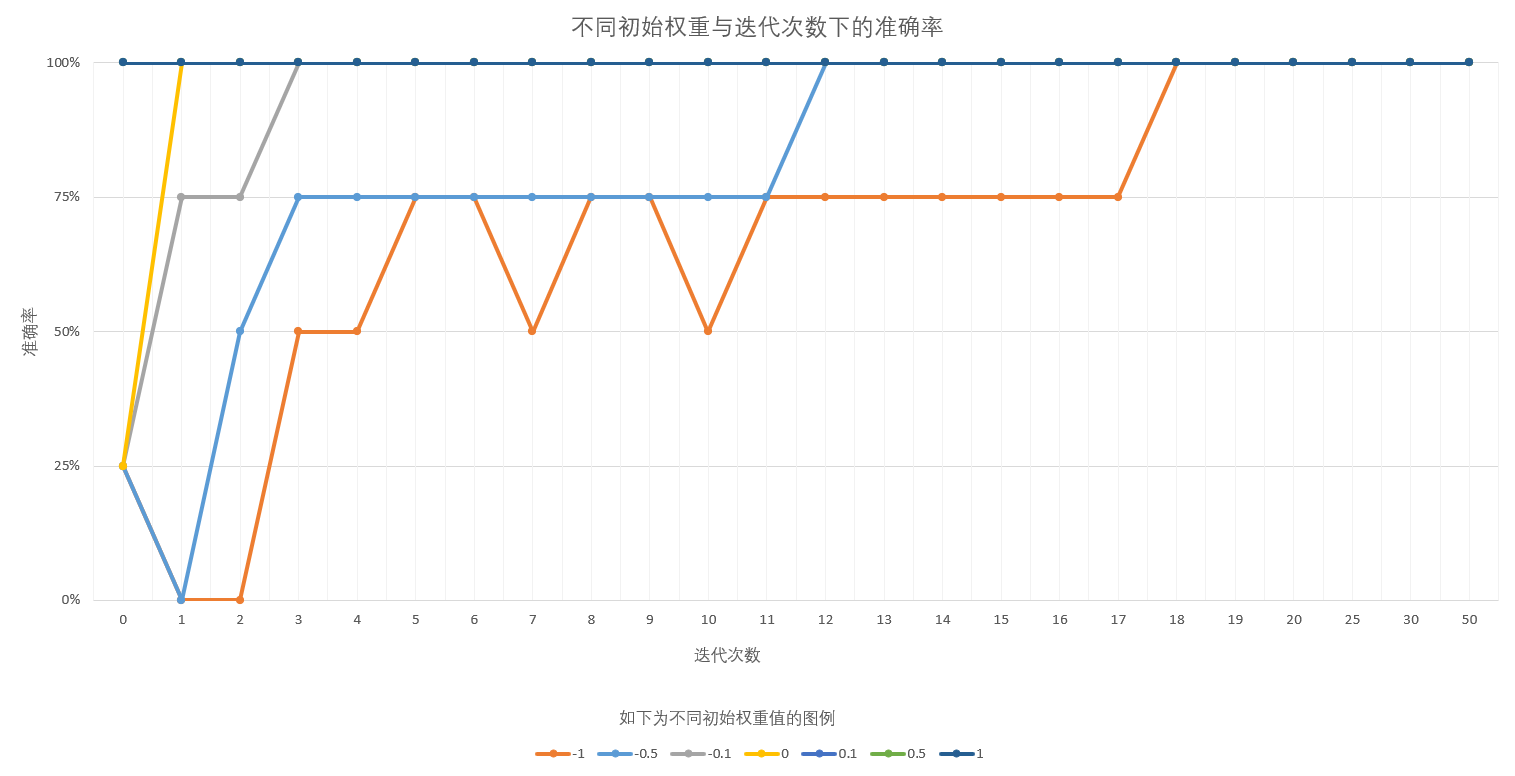

2. 不同迭代次数和初始权重下的准确率

不同迭代次数和初始权重下的准确率不同迭代次数和初始权重下的准确率
